Inline Duct Fans
AEROLYNX Inline Duct Fans are designed for integration within residential and commercial duct ventilation systems, providing powerful and consistent airflow throughout the connected space. Installed directly within the duct line, the fan helps move stale air, improve circulation, and support balanced ventilation performance across longer duct runs and enclosed interiors.
The INL Series combines high extraction capability with low operational noise, making it suitable for bedrooms, offices, consultation rooms, and other environments where quieter airflow performance is important. Its precision-engineered impeller system and efficient motor design help maintain stable air pressure and improved airflow delivery while reducing vibration and sound levels during operation.
From the Field
"After installing AEROLYNX ERVs across all 48 units, resident complaints about air quality dropped to near zero. The low noise level was critical for us."
"We needed a ventilation solution that could run silently through consultation hours. The performance has been reliable since day one."
"Integration with our existing ductwork was seamless. The HEPA filter boxes made a visible difference in the air quality reports we run monthly."

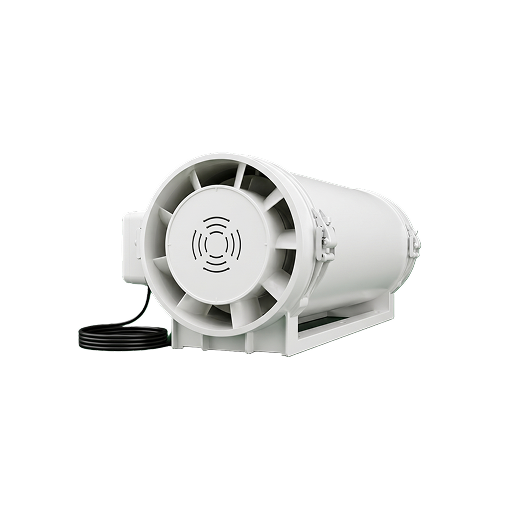

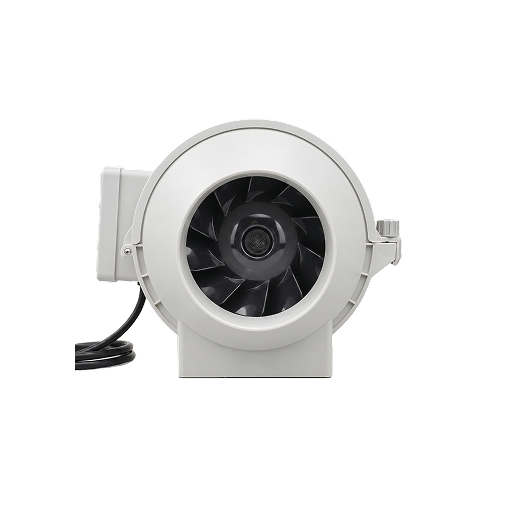

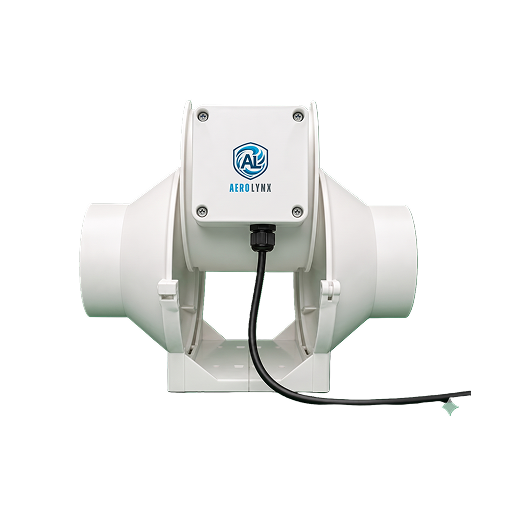

Inside the Inline Duct Fan
The Inline Duct Fan is built with an aerodynamic impeller system and compact insulated housing to deliver stable airflow performance with reduced operational noise. Its internal airflow pathway is engineered to improve air movement efficiency while maintaining smooth and balanced ventilation across connected duct systems. The durable motor assembly and optimized blade design support reliable long-term operation in both residential and commercial environments.
The Inline Duct Fans Key Features:
- High-Efficiency DesignOptimized airflow engineering designed to deliver stable air movement with improved ventilation efficiency.
- Guide Vane ImpellerPrecision-engineered impeller blades help improve airflow balance and smoother air delivery.
- Higher Suction CapacityBuilt for stronger extraction performance across residential and commercial ventilation systems.

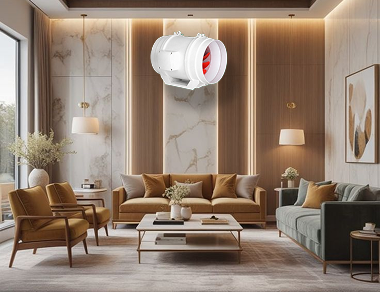

Before vs After Installation
How Does an Inline Duct Fan Work?
AEROLYNX Inline Duct Fans are designed for integration within residential and commercial duct ventilation systems, providing powerful and consistent airflow throughout the connected space. Installed directly within the duct line, the fan helps move stale air, improve circulation, and support balanced ventilation performance across longer duct runs and enclosed interiors.
The INL Series combines high extraction capability with low operational noise, making it suitable for bedrooms, offices, consultation rooms, and other environments where quieter airflow performance is important. Its precision-engineered impeller system and efficient motor design help maintain stable air pressure and improved airflow delivery while reducing vibration and sound levels during operation.
Model & Specification
| Model | Voltage / Hz | Speed | Power (W) | Air Volume (CFM) | Pressure (Pa) | Noise (dB) | Net Weight |
|---|---|---|---|---|---|---|---|
| INL-400 | 220V-50Hz | Hi/Lo | 35/30 | 200/120 | 132/106 | 31/26 | 2.0 KG |
| INL-600 | 220V-50Hz | Hi/Lo | 75/65 | 400/265 | 280/240 | 33/29 | 2.3 KG |
| INL-800 | 220V-50Hz | Hi/Lo | 140/125 | 600/495 | 350/270 | 63/55 | 3.6 KG |
| INL-1000 | 220V-50Hz | Hi/Lo | 220/200 | 825/620 | 490/370 | 66/58 | 7.9 KG |
| INL-1200 | 220V-50Hz | Hi/Lo | 420/350 | 1295/1030 | 690/430 | 69/61 | 10.4 KG |
Why Inline Duct Fans?
Here's what sets it apart.
High-Efficiency Design
Optimized airflow engineering designed to deliver stable air movement with improved ventilation efficiency.
Guide Vane Impeller
Precision-engineered impeller blades help improve airflow balance and smoother air delivery.
Higher Suction Capacity
Built for stronger extraction performance across residential and commercial ventilation systems.
Noise Level
LOW AS 26 DB
Air Volume
UP TO 1295 CFM
Motor
HIGH EFFICIENCY MOTOR
