Fresh Air Units (FAU)
Fresh Air Units are designed to continuously introduce filtered outdoor air into indoor environments, helping maintain better airflow circulation and improved indoor air quality. The system draws in outside air through an integrated filtration setup before distributing the cleaned air into occupied spaces through connected duct systems.
The dual-stage filtration process helps reduce dust and airborne particles before the air reaches the interior environment, while the low-noise motor supports quieter day-to-day operation. Designed for ceiling-mounted installation, the unit offers a compact ventilation solution suitable for homes, offices, retail spaces, and other indoor applications requiring a continuous supply of fresh air.
From the Field
"After installing AEROLYNX ERVs across all 48 units, resident complaints about air quality dropped to near zero. The low noise level was critical for us."
"We needed a ventilation solution that could run silently through consultation hours. The performance has been reliable since day one."
"Integration with our existing ductwork was seamless. The HEPA filter boxes made a visible difference in the air quality reports we run monthly."

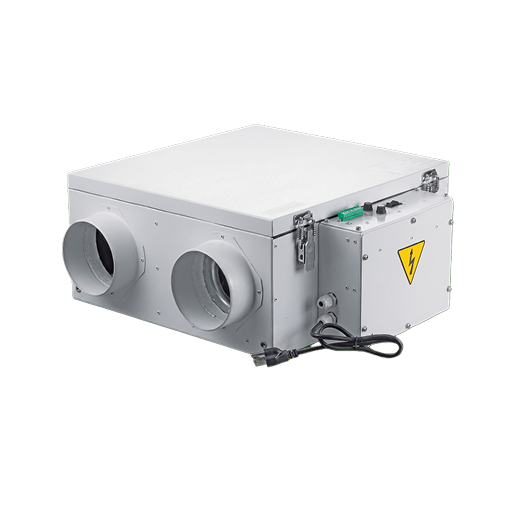

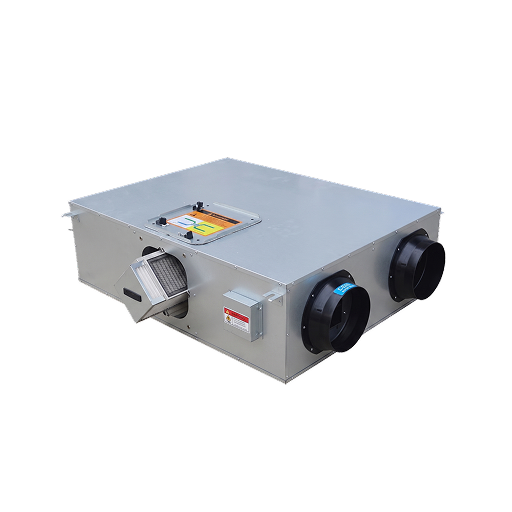

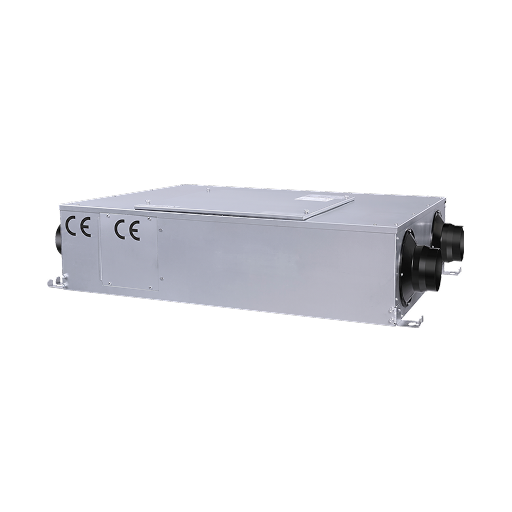

Inside the Fresh Air Unit
The Fresh Air Unit integrates a low-noise motor, dual-stage filtration system, and compact ceiling-mounted structure into a complete fresh air ventilation solution. Designed for continuous airflow performance, the unit helps introduce filtered outdoor air into indoor spaces while maintaining stable circulation and quieter operation. Its compact engineering allows for efficient ceiling integration across residential and commercial applications.
The Fresh Air Units (FAU) Key Features:
- Double Protection FiltersDual-stage filtration system designed to support cleaner indoor airflow and improved air quality.
- Stable AirflowEngineered to maintain smooth and consistent fresh air delivery across indoor spaces.
- Ceiling IntegrationCompact ceiling-mounted structure suitable for residential and commercial ventilation layouts.
Before vs After Installation

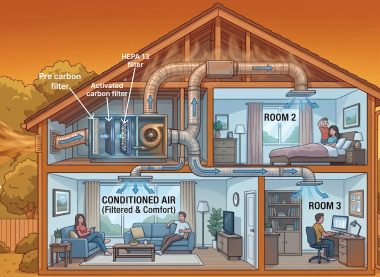

How Does a Fresh Air Unit Work?
Fresh Air Units are designed to continuously introduce filtered outdoor air into indoor environments, helping maintain better airflow circulation and improved indoor air quality. The system draws in outside air through an integrated filtration setup before distributing the cleaned air into occupied spaces through connected duct systems.
The dual-stage filtration process helps reduce dust and airborne particles before the air reaches the interior environment, while the low-noise motor supports quieter day-to-day operation. Designed for ceiling-mounted installation, the unit offers a compact ventilation solution suitable for homes, offices, retail spaces, and other indoor applications requiring a continuous supply of fresh air.
Model & Specification
| Model | Voltage / Hz | Speed | Power (W) | Air Volume (CFM) | Pressure (Pa) | Noise (dB) | Net Weight |
|---|---|---|---|---|---|---|---|
| FAU-100 | 220V-50Hz | Hi/Lo | 45/30 | 100/75 | 160 | 25 dB | 6.7 KG |
| FAU-150 | 220V-50Hz | Hi/Lo | 60/45 | 175/100 | 220 | 30 dB | 7.6 KG |
| FAU-150A | 220V-50Hz | Hi/Lo | 75/55 | 300/225 | 260 | 34 dB | 7.6 KG |
| FAU-200 | 220V-50Hz | Hi/Lo | 85/75 | 300/225 | 260 | 34 dB | 9.0 KG |
| FAU-200A | 220V-50Hz | Hi/Lo | 130/115 | 750/600 | 410 | 45 dB | 9.0 KG |
Why Fresh Air Units (FAU)?
Here's what sets it apart.
Double Protection Filters
Dual-stage filtration system designed to support cleaner indoor airflow and improved air quality.
Stable Airflow
Engineered to maintain smooth and consistent fresh air delivery across indoor spaces.
Ceiling Integration
Compact ceiling-mounted structure suitable for residential and commercial ventilation layouts.
Filtration
DOUBLE FILTER
Noise Level
LOW AS 25 DB
Air Delivery
750 CFM MAX
