Air Filter Box
The AEROLYNX GLX Series Air Filter Box is engineered to provide high-efficiency air filtration within existing ventilation and duct systems without requiring additional electrical power. As air moves through the ductwork, the integrated HEPA H13 filter captures airborne particles, helping improve overall indoor air cleanliness across the connected space.
Designed for residential, commercial, and institutional ventilation applications, the GLX Series combines passive filtration performance with a compact duct-ready structure. Its sealed construction helps maintain controlled airflow through the filtration chamber, while the removable access design simplifies routine servicing and filter replacement. With multiple sizing options available, the unit can be integrated into a wide range of ventilation layouts and airflow requirements.
From the Field
"After installing AEROLYNX ERVs across all 48 units, resident complaints about air quality dropped to near zero. The low noise level was critical for us."
"We needed a ventilation solution that could run silently through consultation hours. The performance has been reliable since day one."
"Integration with our existing ductwork was seamless. The HEPA filter boxes made a visible difference in the air quality reports we run monthly."

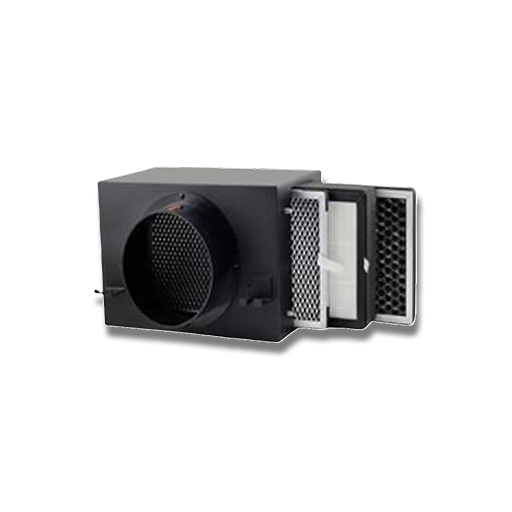

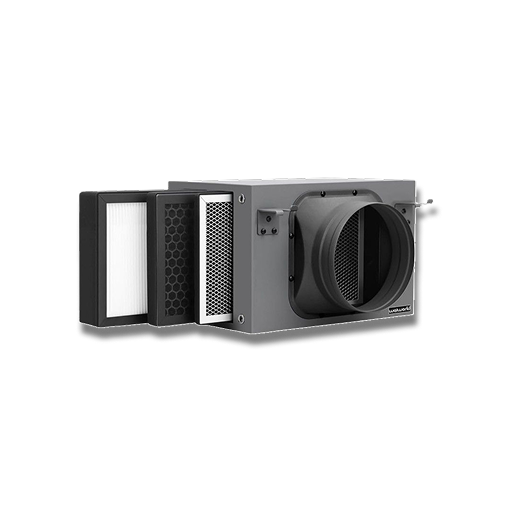

Inside the Air Filter Box
The Air Filter Box is designed with a sealed HEPA filtration chamber that helps improve indoor air quality by filtering airborne particles as air passes through the duct system. Its durable housing structure supports stable airflow performance while protecting the internal filter assembly. The compact and service-friendly design allows for convenient installation and easier filter maintenance across residential and commercial ventilation systems.
The Air Filter Box Key Features:
- HEPA H13 FiltrationHigh-efficiency HEPA filtration designed to help capture airborne particles and improve indoor air quality.
- Quick Access CoverService-friendly access panel allows easier inspection and faster filter replacement during maintenance.
- Zero Power ConsumptionPassive filtration design operates without electricity while supporting cleaner airflow within duct systems.
Before vs After Installation

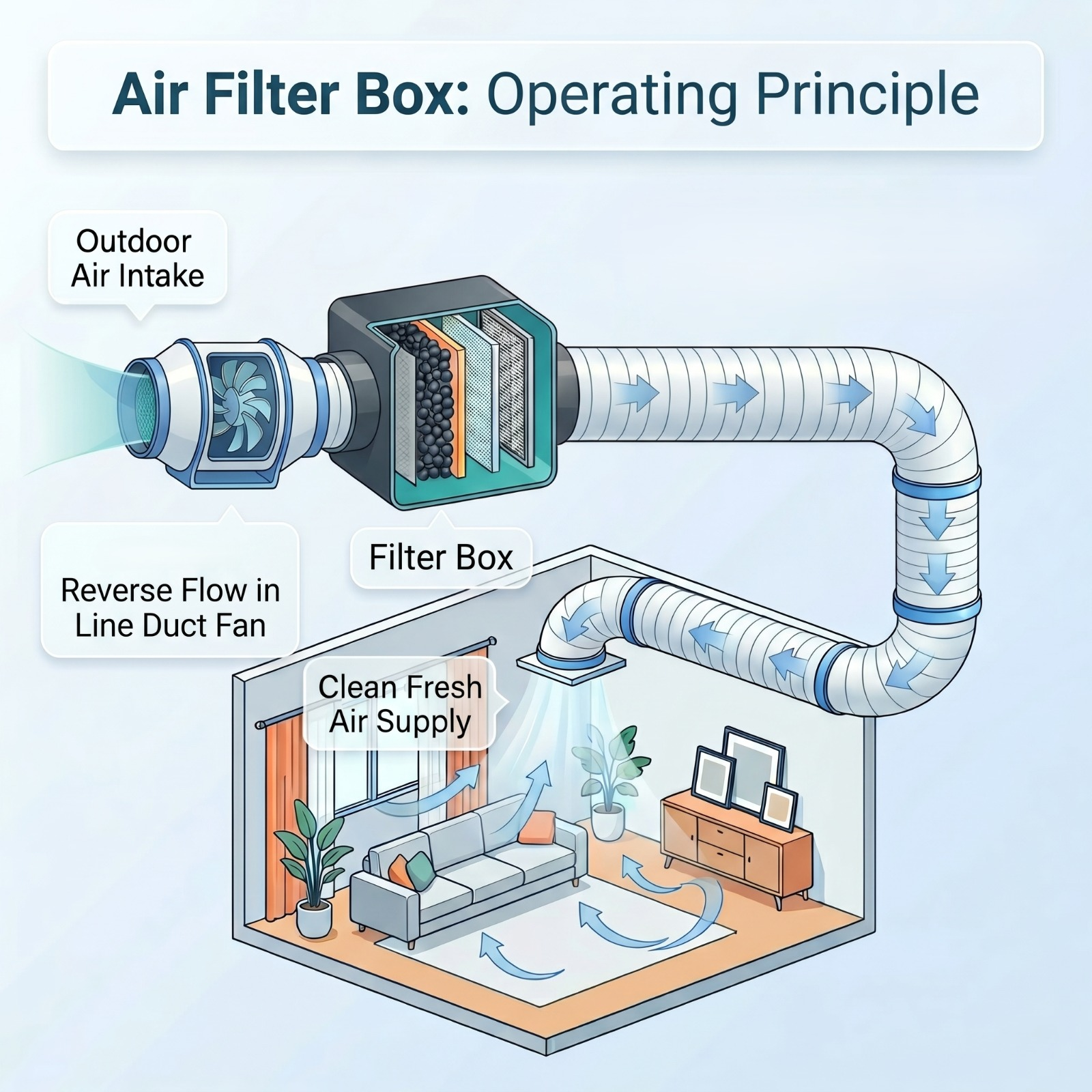

How Does an Air Filter Box Work?
The AEROLYNX GLX Series Air Filter Box is engineered to provide high-efficiency air filtration within existing ventilation and duct systems without requiring additional electrical power. As air moves through the ductwork, the integrated HEPA H13 filter captures airborne particles, helping improve overall indoor air cleanliness across the connected space.
Designed for residential, commercial, and institutional ventilation applications, the GLX Series combines passive filtration performance with a compact duct-ready structure. Its sealed construction helps maintain controlled airflow through the filtration chamber, while the removable access design simplifies routine servicing and filter replacement. With multiple sizing options available, the unit can be integrated into a wide range of ventilation layouts and airflow requirements.
Model & Specification
| Model | Duct Size | Casing Size | Airflow (CFM) | Airflow Reduction | HEPA Rating |
|---|---|---|---|---|---|
| GLX-100 | 100MM | 300×200×200MM | 200 CFM | 15–25% | H13 |
| GLX-150 | 150MM | 300×200×200MM | 350 CFM | 15–25% | H13 |
| GLX-200 | 200MM | 430×300×300MM | 900 CFM | 15–25% | H13 |
| GLX-250 | 240MM | 430×300×300MM | 1550 CFM | 15–25% | H13 |
Why Air Filter Box?
Here's what sets it apart.
HEPA H13 Filtration
High-efficiency HEPA filtration designed to help capture airborne particles and improve indoor air quality.
Quick Access Cover
Service-friendly access panel allows easier inspection and faster filter replacement during maintenance.
Zero Power Consumption
Passive filtration design operates without electricity while supporting cleaner airflow within duct systems.
Filtration
HEPA H13
Airflow
UP TO 1550 CFM
Power Usage
ZERO POWER
